Abstract Human Figure Metal Sculpture Installation Art
🔍
Abstract Human Figure Metal Sculpture Installation Art

Abstract Human Figure Metal Sculpture Installation Art

Designed from stainless steel with painted finish, this abstract human sculpture brings a modern artistic touch to indoor or outdoor spaces. Smooth curves and hollow forms create visual balance and movement. Suitable for plazas, hotels, and galleries, it adds a simple yet expressive focal point that attracts attention easily directly

Categories: ,
Scenario Applications

  • Commercial settings: Office building plazas, corporate campuses, hotel lobbies, sales centers, etc.
  • Cultural & tourism settings: Cultural plazas, parks and scenic areas, campuses, exhibition halls, etc.
  • Private settings: Villa courtyards, private clubs, art galleries, etc.
  • Suitable environments: Open-air outdoors, indoor climate-controlled spaces, seaside/high-salinity environments (rust-resistant specifications), etc.
Process Details

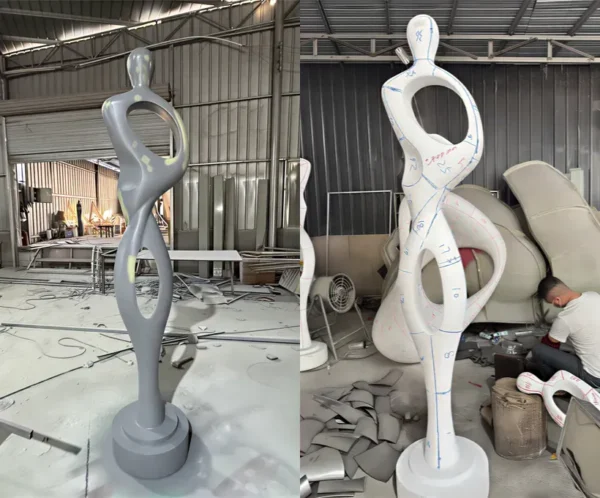

  • A 1:1 scale model made of ABS plastic is produced using 3D printing technology. For the sculpture’s surface, 2.0mm-thick 304 stainless steel sheets are used; these are cut based on layout lines marked on the model and shaped into the required curvature through manual forging—involving approximately 3,000 hammer strikes per square meter—followed by assembly and spot welding. Flat sections are precision-cut via laser based on Rhino software designs and then assembled. The finishing process begins with grinding down weld seams and forging marks using 80-grit abrasives, followed by progressive sanding with 120- to 320-grit sandpaper to achieve a smooth, even surface. The coating sequence is as follows: first, an epoxy zinc-rich primer; second, application of high-temperature automotive body filler (putty) sanded smooth with 400-grit sandpaper; third, another layer of epoxy zinc-rich primer; fourth, application of a two-component colored topcoat; and fifth, a protective glaze/sealer finish. Finally, the sculpture is oven-baked at temperatures between 100°C and 180°C for 80 minutes.
Design Philosophy

  1. Human Abstraction and Spatial Tension
    By simplifying the human form and using fluid lines to depict the interplay between posture and space, the design emphasizes a sense of visual extension.
  2. Minimalist Silhouettes and Emotional Expression
    Stripping away intricate details, the clean, sculptural language conveys an atmosphere of tranquility, contemplation, or fluidity.
  3. Stainless Steel Finish and Environmental Integration
    A stainless steel finish ensures color stability in outdoor settings while allowing the piece to blend seamlessly with architectural and landscape spaces.
Transport and Installation

  • Protective Packaging: Reinforced wooden crates with EPE foam padding on all edges and corners to prevent impact and scratches;large sculptures can be disassembled for packaging;
  • Logistics Options: Sea, air, and land transport available; supports both FCL (Full Container Load) and LCL (Less than Container Load) shipments;
  • Installation Support: Includes embedded base, expansion anchor bolts, and leveling accessories; comprehensive printed installation diagrams provided;
  • Ancillary Services: On-site installation teams available; free replacement of repair materials for transit damage; shipping insurance coverage available.
Customization Time

  • Drawing approval period: 3–5 working days;
  • Main forging production: 10–20 days (depending on sculpture size);
  • Surface finishing and quality inspection: 3–7 days;
  • Packaging and preparation: 2 days;
  • Value-added service: Production time for rush orders can be shortened for a small additional fee.
