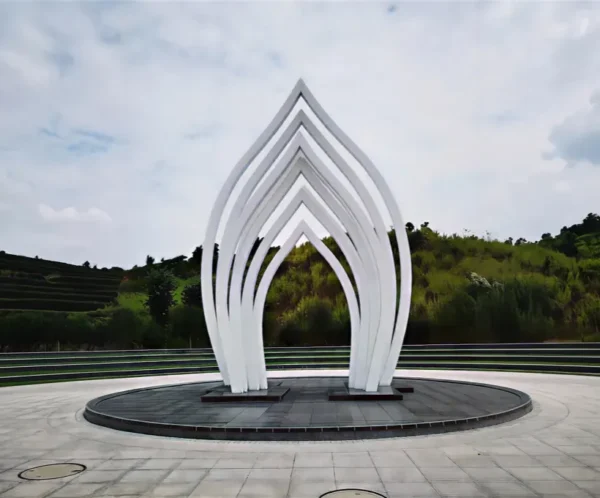

Modern Minimal White Arch Steel Sculpture Outdoor
🔍
Modern Minimal White Arch Steel Sculpture Outdoor

Modern Minimal White Arch Steel Sculpture Outdoor

Abstract stainless steel painted arch sculpture designed for outdoor landscapes and modern plazas, featuring smooth layered curves that create a sense of movement and openness, suitable for commercial spaces, parks, residential projects, hotels, and urban installations, with durable finish, customizable size, and easy integration into architectural environments worldwide installation ready

Categories: ,
Scenario Applications

  • Commercial settings: Office building plazas, corporate campuses, hotel lobbies, sales centers, etc.
  • Cultural & tourism settings: Cultural plazas, parks and scenic areas, campuses, exhibition halls, etc.
  • Private settings: Villa courtyards, private clubs, art galleries, etc.
  • Suitable environments: Open-air outdoors, indoor climate-controlled spaces, seaside/high-salinity environments (rust-resistant specifications), etc.
Process Details

  • A 1:1 scale model made of ABS plastic is produced using 3D printing technology. For the sculpture’s surface, 2.0mm-thick 304 stainless steel sheets are used; these are cut based on layout lines marked on the model and shaped into the required curvature through manual forging—involving approximately 3,000 hammer strikes per square meter—followed by assembly and spot welding. Flat sections are precision-cut via laser based on Rhino software designs and then assembled. The finishing process begins with grinding down weld seams and forging marks using 80-grit abrasives, followed by progressive sanding with 120- to 320-grit sandpaper to achieve a smooth, even surface. The coating sequence is as follows: first, an epoxy zinc-rich primer; second, application of high-temperature automotive body filler (putty) sanded smooth with 400-grit sandpaper; third, another layer of epoxy zinc-rich primer; fourth, application of a two-component colored topcoat; and fifth, a protective glaze/sealer finish. Finally, the sculpture is oven-baked at temperatures between 100°C and 180°C for 80 minutes.
Design Philosophy

  1. Gateway of Flow
    Multiple arch layers rise like a passage, symbolizing transition, growth, and connection between spaces, creating a visual “entry point” for public areas.
  2. Light & Shadow Rhythm
    The stacked curved forms naturally capture sunlight, producing changing shadows throughout the day and enhancing spatial dynamics.
  3. Modern Urban Harmony
    Clean white finish + geometric layering blends minimal architecture with natural surroundings, making it suitable for plazas, parks, and modern buildings.
Transport and Installation

  • Protective Packaging: Reinforced wooden crates with EPE foam padding on all edges and corners to prevent impact and scratches;large sculptures can be disassembled for packaging;
  • Logistics Options: Sea, air, and land transport available; supports both FCL (Full Container Load) and LCL (Less than Container Load) shipments;
  • Installation Support: Includes embedded base, expansion anchor bolts, and leveling accessories; comprehensive printed installation diagrams provided;
  • Ancillary Services: On-site installation teams available; free replacement of repair materials for transit damage; shipping insurance coverage available.
Customization Time

  • Drawing approval period: 3–5 working days;
  • Main forging production: 10–20 days (depending on sculpture size);
  • Surface finishing and quality inspection: 3–7 days;
  • Packaging and preparation: 2 days;
  • Value-added service: Production time for rush orders can be shortened for a small additional fee.
