Color Flow Stainless Steel Sculpture Installation
🔍
Color Flow Stainless Steel Sculpture Installation

Color Flow Stainless Steel Sculpture Installation

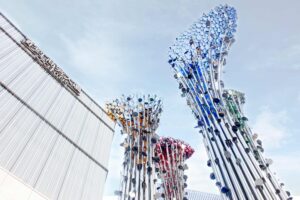

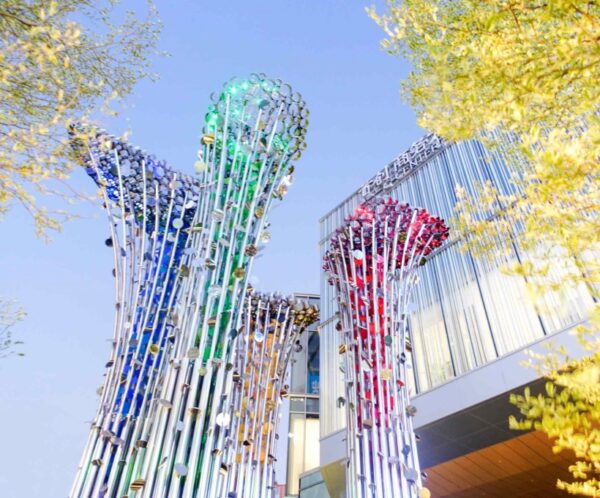

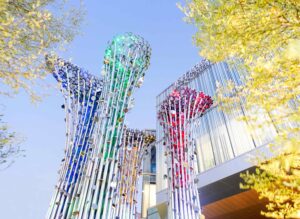

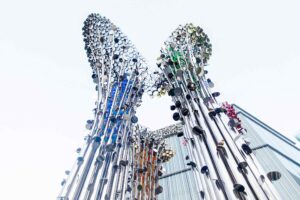

This outdoor sculpture installation combines vibrant metallic tones with fluid vertical forms, creating a dynamic visual rhythm in public space. The reflective surface interacts with natural light, producing changing colors throughout the day. Designed for plazas, commercial centers, and modern architectural environments, it brings movement and energy into the surrounding landscape.

Categories: , , Tag:
Scenario Applications

  • Commercial settings: Office building plazas, corporate campuses, hotel lobbies, sales centers, etc.
  • Cultural & tourism settings: Cultural plazas, parks and scenic areas, campuses, exhibition halls, etc.
  • Private settings: Villa courtyards, private clubs, art galleries, etc.
  • Suitable environments: Open-air outdoors, indoor climate-controlled spaces, seaside/high-salinity environments (rust-resistant specifications), etc.
Process Details

  • A 1:1 scale model made of ABS plastic is produced using 3D printing technology. For the sculpture’s surface, 2.0mm-thick 304 stainless steel sheets are used; these are cut based on layout lines marked on the model and shaped into the required curvature through manual forging—involving approximately 3,000 hammer strikes per square meter—followed by assembly and spot welding. Flat sections are precision-cut via laser based on Rhino software designs and then assembled. The finishing process begins with grinding down weld seams and forging marks using 80-grit abrasives, followed by progressive sanding with 120- to 320-grit sandpaper to achieve a smooth, even surface. The coating sequence is as follows: first, an epoxy zinc-rich primer; second, application of high-temperature automotive body filler (putty) sanded smooth with 400-grit sandpaper; third, another layer of epoxy zinc-rich primer; fourth, application of a two-component colored topcoat; and fifth, a protective glaze/sealer finish. Finally, the sculpture is oven-baked at temperatures between 100°C and 180°C for 80 minutes.

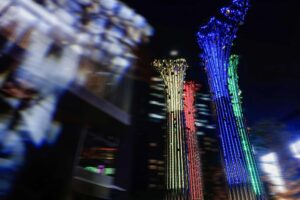

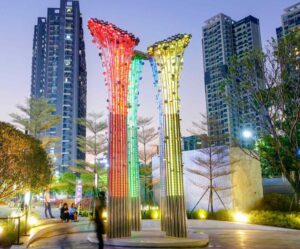

  • The outdoor sculptures utilize 24V low-voltage LED light sources, eliminating the risk of electric shock. Advanced power supply and control systems enable the lighting to synchronize with the rhythm of the music, producing color-changing and flashing effects.
Design Philosophy

  1. Light & Color Interaction
    The electroplated surface reflects sunlight and environment, creating shifting color effects throughout the day.
  2. Vertical Rhythm Structure
    Multiple rising stainless-steel rods form a flowing skyline-like silhouette with strong visual impact.
  3. Public Space Integration
    Designed to blend with architecture and landscape, enhancing spatial identity and visitor engagement.
Transport and Installation

  • Protective Packaging: Reinforced wooden crates with EPE foam padding on all edges and corners to prevent impact and scratches;large sculptures can be disassembled for packaging;
  • Logistics Options: Sea, air, and land transport available; supports both FCL (Full Container Load) and LCL (Less than Container Load) shipments;
  • Installation Support: Includes embedded base, expansion anchor bolts, and leveling accessories; comprehensive printed installation diagrams provided;
  • Ancillary Services: On-site installation teams available; free replacement of repair materials for transit damage; shipping insurance coverage available.
Customization Time

  • Drawing approval period: 3–5 working days;
  • Main forging production: 10–20 days (depending on sculpture size);
  • Surface finishing and quality inspection: 3–7 days;
  • Packaging and preparation: 2 days;
  • Value-added service: Production time for rush orders can be shortened for a small additional fee.
