Mirror Stainless Steel Whale Jump Sculpture Outdoor
🔍
Mirror Stainless Steel Whale Jump Sculpture Outdoor

Mirror Stainless Steel Whale Jump Sculpture Outdoor

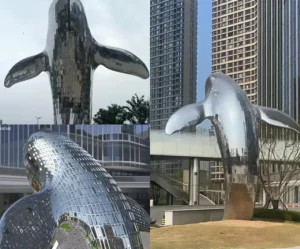

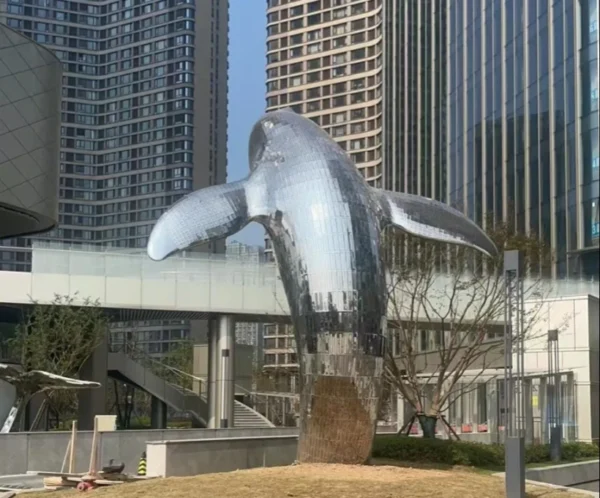

Mirror stainless steel whale-inspired jumping sculpture featuring perforated geometric panels, designed for modern plazas, commercial landscapes, and waterfront installations, combining reflective mirror surfaces with structural cutouts to create dynamic light and shadow effects, durable stainless steel fabrication suitable for outdoor environments, customizable scale and finish for architectural art projects worldwide

Categories: ,
Scenario Applications

  • Commercial settings: Office building plazas, corporate campuses, hotel lobbies, sales centers, etc.
  • Cultural & tourism settings: Cultural plazas, parks and scenic areas, campuses, exhibition halls, etc.
  • Private settings: Villa courtyards, private clubs, art galleries, etc.
  • Suitable environments: Open-air outdoors, indoor climate-controlled spaces, seaside/high-salinity environments (rust-resistant specifications), etc.
Process Details

  • A 1:1 scale model is first produced from ABS material using 3D printing technology. For the sculpture’s surface, 2.0mm-thick 304 stainless steel sheets are marked and cut based on the model; the metal is then shaped through manual forging—involving approximately 3,000 hammer strikes per square meter—followed by seamless welding of the sections. Flat steel components are precision-cut via laser based on Rhino software designs and assembled. The subsequent mirror-polishing process begins with grinding down weld seams and forging marks using 80-grit sandpaper, followed by progressive smoothing with sandpaper grits of 120, 320, 600, 800, 1200, and 2000. A sisal wheel with purple polishing compound is used to remove initial grinding marks, followed by a wool wheel to eliminate marks left by the sisal wheel. Finally, a cloth wheel with green and white polishing compounds is used for the finishing polish to achieve a mirror-like surface. Internally, a galvanized square-tube framework is installed to match the sculpture’s dimensions, enhancing wind and seismic resistance, with anti-rust treatment applied to all weld joints.
Design Philosophy

  1. Marine Motion Symbolism
    The leaping whale-inspired form expresses movement, freedom, and natural energy, bringing a strong sense of vitality to public spaces.
  2. Light & Perforation Interaction

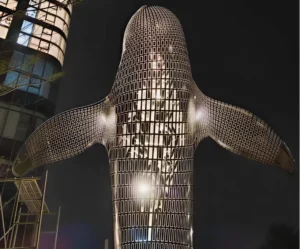

    Hollow geometric cutouts allow light to pass through, creating shifting shadow patterns that change throughout the day.
  3. Mirror Urban Integration
    Polished stainless steel surface reflects surrounding architecture and sky, blending the sculpture into the city environment while still standing out visually.
Transport and Installation

  • Protective Packaging: Reinforced wooden crates with EPE foam padding on all edges and corners to prevent impact and scratches;large sculptures can be disassembled for packaging;
  • Logistics Options: Sea, air, and land transport available; supports both FCL (Full Container Load) and LCL (Less than Container Load) shipments;
  • Installation Support: Includes embedded base, expansion anchor bolts, and leveling accessories; comprehensive printed installation diagrams provided;
  • Ancillary Services: On-site installation teams available; free replacement of repair materials for transit damage; shipping insurance coverage available.
Customization Time

  • Drawing approval period: 3–5 working days;
  • Main forging production: 10–20 days (depending on sculpture size);
  • Surface finishing and quality inspection: 3–7 days;
  • Packaging and preparation: 2 days;
  • Value-added service: Production time for rush orders can be shortened for a small additional fee.
